Neuromancer Codewheel – Part 1

Editorial note: This is the first of a two-part tutorial on reverse engineering executables. Today, we’ll walk through the process of finding the section of an executable responsible for performing a certain task, and next week we’ll analyze the assembly instructions which comprise that section.

The Project

The game “Neuromancer”, from 1989, uses a “Pax Verification Code Wheel” as a form of copy protection. I wanted to dig into the codewheel’s implementation because I was curious whether the codes were generated algorithmically, or pulled from a look-up table. The aim of this project, therefore, is to find and analyze the portion of Neuromancer’s machine code that is concerned with codewheel checks.

Following Along

If you’d like to play along at home, get yourself a copy of the PC version of “Neuromancer”. The MD5 hash should be:

  • 0x4b1d2c88f96f298c568c6f8694d727b7

(Note that the MD5 will be different if you’re using a cracked copy of the game.) The memory addresses I cite in this article will likely be different from those you see on your machine, but file offsets, segment offsets, and relative memory locations should be the same.

Beginnings

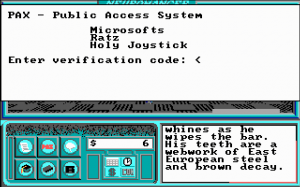

Let’s look at one of the screens related to the codewheel:

This screen has 5 lines of text displayed on it:

  • “PAX – Public Access System”
  • “Microsofts”
  • “Ratz”
  • “Holy Joystick”
  • “Enter verification code”

If we check the neuro.exe executable with a hex editor, we find that the first and last strings are in the executable, at file offsets 0x15e1b and 0x15e37. (The string “Ratz” is also found in the executable, but at a distant offset, and in a context that appears unrelated.) These strings will enable us to zero in on the instructions related to the codewheel.

Segments and Offsets

Neuromancer is a 16-bit program, so it uses a segmented memory model. In such a model, addressable memory is the 1M address space between 0x00000 and 0xFFFFF, and memory is addressed with segment:offset pairs. In these pairs the segment and offset are each 16-bit numbers, and the final physical address is equal to segment*16 + offset. In the vast majority of instructions, the segment is implicitly stored in the DS or CS registers (depending on the instruction’s opcode) and only the offset is specified by the instruction itself.

Ultimately, we will want to search for instructions which reference the codewheel-related strings. Such a search depends upon knowing the offsets used to refer to those strings, and those offsets in turn depend upon the implicit segment used by the instructions containing the offsets, and the strings’ position in memory relative to that segment.

It is reasonable to guess that the instructions that reference the codewheel-related strings will use the DS register for segment information. It is also reasonable to guess that the program will set up a primary data segment early in its execution, store the address of that segment in DS, and rarely change it thereafter. Therefore, if we can break program execution after that initial setup is complete, we can search the DS segment for the text strings, and find their offsets.

Video interrupts are pretty rare, and likely to be executed only after segment setup has been completed. Therefore, INT 10h (opcode cd 10) instructions are good places to set breakpoints at which to search for our strings of interest.

If we fire up the DOS DEBUG command by entering “debug neuro.exe” at the command line, we can search for INT 10h instructions by entering “s ds:0 l 0 cd 10” at the debugger prompt. This will search the first 64K of the executable for the byte sequence cd 10, since DS is initialized s.t. DS:0000 falls near the beginning of the executable image.

This command turns up two results, at 13CB:DD68 and 13CB:DDDC. If we enter “g 13cb:dd68 13cb:dddc” at the debugger prompt, we will find that we don’t hit either breakpoint until we exit the game. (That’s ok, though – just play and exit!) When we do hit the breakpoints, we can enter the following commands to search the DS segment for the strings we’re interested in:

  • s ds:0 l 0 "PAX - Public"
  • s ds:0 l 0 "Enter veri"

Each search returns one result.

  • s ds:0 l 0 "PAX - Public" returns 59b7:5458
  • s ds:0 l 0 "Enter veri" returns 59b7:5474

The relative addresses of the strings look ok. From these results, we can conclude that we should look for instructions referencing offsets 0x5458 and 0x5474.

Code

Let’s restart the DOS DEBUG command by entering “debug neuro.exe” at the command line, and search for references to these offsets. Any such references will be encoded in opcodes as LSB shorts, so enter these commands at the debug prompt (again, this will search the first 64K of the executable for the byte sequences in question):

  • s ds:0 l 0 58 54
  • s ds:0 l 0 74 54

The results are promising:

  • s ds:0 l 0 58 54 returns 13cb:5ac1
  • s ds:0 l 0 74 54 returns 13cb:42ec and 13cb:5b72

There are a pair of references to the two strings near 13cb:5a__. There’s a good chance the code near there is related to the codewheel.

In general, the machine code for functions is demarcated by the byte sequence c3 55 8b ec, representing the opcodes RET, PUSH BP, and MOV BP, SP. (The first opcode comes from the end of one function, and the next two from the beginning of another.) Let’s look for these “fence bytes” preceeding our suspected codewheel code. Entering:

s 13cb:5700 l 3c1 c3 55 8b ec

(i.e. search for the byte sequence c3 55 8b ec in the 0x3c1 bytes preceeding the first reference to one of the PAX strings) at the debugger prompt returns about a dozen addresses, of which the latest is 13cb:5a91.

If we put a breakpoint at 13cb:5a92 (by entering “g 13cb:5a92” at the debugger prompt), we find that this code is, in fact, invoked when we attempt to access the PAX terminal in the game. When we hit the breakpoint, we find that the current CS:IP pointer is actually 13db:5992 – which is, mathematically, identical to 13cb:5a92. If we then (repeatedly) use the “u” command to unassemble the machine code at and following this address, we find the instructions reproduced below. We will analyze them next week.

13DB:5992 55            PUSH    BP
13DB:5993 8BEC          MOV     BP, SP
13DB:5995 83EC0C        SUB     SP, +0C
13DB:5998 B87C6A        MOV     AX, 6A7C
13DB:599B 1E            PUSH    DS
13DB:599C 50            PUSH    AX
13DB:599D B84A54        MOV     AX, 544A
13DB:59A0 50            PUSH    AX
13DB:59A1 E8ACCB        CALL    2550
13DB:59A4 83C406        ADD     SP, +06
13DB:59A7 B80100        MOV     AX, 0001
13DB:59AA 50            PUSH    AX
13DB:59AB E8D3F7        CALL    5181
13DB:59AE 83C402        ADD     SP, +02
13DB:59B1 B80800        MOV     AX, 0008
13DB:59B4 50            PUSH    AX
13DB:59B5 50            PUSH    AX
13DB:59B6 E8F6F1        CALL    4BAF
13DB:59B9 83C404        ADD     SP, +04
13DB:59BC B80200        MOV     AX, 0002
13DB:59BF 50            PUSH    AX
13DB:59C0 B85854        MOV     AX, 5458
13DB:59C3 50            PUSH    AX
13DB:59C4 E813F2        CALL    4BDA
13DB:59C7 83C404        ADD     SP, +04
13DB:59CA E801A1        CALL    FACE
13DB:59CD 250F00        AND     AX, 000F
13DB:59D0 8946FC        MOV     [BP-04], AX
13DB:59D3 E8F8A0        CALL    FACE
13DB:59D6 250F00        AND     AX, 000F
13DB:59D9 8946FA        MOV     [BP-06], AX
13DB:59DC E8EFA0        CALL    FACE
13DB:59DF 250F00        AND     AX, 000F
13DB:59E2 8946F8        MOV     [BP-08], AX
13DB:59E5 B81800        MOV     AX, 0018
13DB:59E8 50            PUSH    AX
13DB:59E9 B86000        MOV     AX, 0060
13DB:59EC 50            PUSH    AX
13DB:59ED E8BFF1        CALL    4BAF
13DB:59F0 83C404        ADD     SP, +04
13DB:59F3 B80200        MOV     AX, 0002
13DB:59F6 50            PUSH    AX
13DB:59F7 FF76FC        PUSH    [BP-04]
13DB:59FA B87C6A        MOV     AX, 6A7C
13DB:59FD 50            PUSH    AX
13DB:59FE E8BC21        CALL    7BBD
13DB:5A01 83C404        ADD     SP, +04
13DB:5A04 50            PUSH    AX
13DB:5A05 E8D2F1        CALL    4BDA
13DB:5A08 83C404        ADD     SP, +04
13DB:5A0B B82000        MOV     AX, 0020
13DB:5A0E 50            PUSH    AX
13DB:5A0F B86000        MOV     AX, 0060
13DB:5A12 50            PUSH    AX
13DB:5A13 E899F1        CALL    4BAF
13DB:5A16 83C404        ADD     SP, +04
13DB:5A19 B80200        MOV     AX, 0002
13DB:5A1C 50            PUSH    AX
13DB:5A1D 8B46FA        MOV     AX, [BP-06]
13DB:5A20 051000        ADD     AX, 0010
13DB:5A23 50            PUSH    AX
13DB:5A24 B87C6A        MOV     AX, 6A7C
13DB:5A27 50            PUSH    AX
13DB:5A28 E89221        CALL    7BBD
13DB:5A2B 83C404        ADD     SP, +04
13DB:5A2E 50            PUSH    AX
13DB:5A2F E8A8F1        CALL    4BDA
13DB:5A32 83C404        ADD     SP, +04
13DB:5A35 B82800        MOV     AX, 0028
13DB:5A38 50            PUSH    AX
13DB:5A39 B86000        MOV     AX, 0060
13DB:5A3C 50            PUSH    AX
13DB:5A3D E86FF1        CALL    4BAF
13DB:5A40 83C404        ADD     SP, +04
13DB:5A43 B80200        MOV     AX, 0002
13DB:5A46 50            PUSH    AX
13DB:5A47 8B46F8        MOV     AX, [BP-08]
13DB:5A4A 052000        ADD     AX, 0020
13DB:5A4D 50            PUSH    AX
13DB:5A4E B87C6A        MOV     AX, 6A7C
13DB:5A51 50            PUSH    AX
13DB:5A52 E86821        CALL    7BBD
13DB:5A55 83C404        ADD     SP, +04
13DB:5A58 50            PUSH    AX
13DB:5A59 E87EF1        CALL    4BDA
13DB:5A5C 83C404        ADD     SP, +04
13DB:5A5F B83800        MOV     AX, 0038
13DB:5A62 50            PUSH    AX
13DB:5A63 B80800        MOV     AX, 0008
13DB:5A66 50            PUSH    AX
13DB:5A67 E845F1        CALL    4BAF
13DB:5A6A 83C404        ADD     SP, +04
13DB:5A6D B80200        MOV     AX, 0002
13DB:5A70 50            PUSH    AX
13DB:5A71 B87454        MOV     AX, 5474
13DB:5A74 50            PUSH    AX
13DB:5A75 E862F1        CALL    4BDA
13DB:5A78 83C404        ADD     SP, +04
13DB:5A7B B83800        MOV     AX, 0038
13DB:5A7E 50            PUSH    AX
13DB:5A7F B8D000        MOV     AX, 00D0
13DB:5A82 50            PUSH    AX
13DB:5A83 E829F1        CALL    4BAF
13DB:5A86 83C404        ADD     SP, +04
13DB:5A89 2BC0          SUB     AX, AX
13DB:5A8B 50            PUSH    AX
13DB:5A8C B80600        MOV     AX, 0006
13DB:5A8F 50            PUSH    AX
13DB:5A90 E84405        CALL    5FD7
13DB:5A93 83C404        ADD     SP, +04
13DB:5A96 3DFFFF        CMP     AX, FFFF
13DB:5A99 7508          JNZ     5AA3
13DB:5A9B 83FAFF        CMP     DX, -01
13DB:5A9E 7503          JNZ     5AA3
13DB:5AA0 E904FF        JMP     59A7
13DB:5AA3 B85800        MOV     AX, 0058
13DB:5AA6 50            PUSH    AX
13DB:5AA7 50            PUSH    AX
13DB:5AA8 E804F1        CALL    4BAF
13DB:5AAB 83C404        ADD     SP, +04
13DB:5AAE B80200        MOV     AX, 0002
13DB:5AB1 50            PUSH    AX
13DB:5AB2 B88E54        MOV     AX, 548E
13DB:5AB5 50            PUSH    AX
13DB:5AB6 E821F1        CALL    4BDA
13DB:5AB9 83C404        ADD     SP, +04
13DB:5ABC 8B5EF8        MOV     BX, [BP-08]
13DB:5ABF 8A875620      MOV     AL, [BX+2056]
13DB:5AC3 2AE4          SUB     AH, AH
13DB:5AC5 0346FC        ADD     AX, [BP-04]
13DB:5AC8 2B46FA        SUB     AX, [BP-06]
13DB:5ACB 250F00        AND     AX, 000F
13DB:5ACE 8946FE        MOV     [BP-02], AX
13DB:5AD1 8A876620      MOV     AL, [BX+2066]
13DB:5AD5 2AE4          SUB     AH, AH
13DB:5AD7 B104          MOV     CL, 04
13DB:5AD9 D3E0          SHL     AX, CL
13DB:5ADB 0146FE        ADD     [BP-02], AX
13DB:5ADE 8B5EFE        MOV     BX, [BP-02]
13DB:5AE1 D1E3          SHL     BX, 1
13DB:5AE3 8B877620      MOV     AX, [BX+2076]
13DB:5AE7 8946FE        MOV     [BP-02], AX
13DB:5AEA 2BC0          SUB     AX, AX
13DB:5AEC 8946FC        MOV     [BP-04], AX
13DB:5AEF 8946FA        MOV     [BP-06], AX
13DB:5AF2 EB03          JMP     5AF7
13DB:5AF4 FF46FC        INC     WORD PTR [BP-04]
13DB:5AF7 8B5EFC        MOV     BX, [BP-04]
13DB:5AFA 80BF84693C    CMP     BYTE PTR [BX+6984], 3C
13DB:5AFF 7412          JZ      5B13
13DB:5B01 B103          MOV     CL, 03
13DB:5B03 D366FA        SHL     WORD PTR [BP-06], CL
13DB:5B06 8A878469      MOV     AL, [BX+6984]
13DB:5B0A 98            CBW
13DB:5B0B 2D3000        SUB     AX, 0030
13DB:5B0E 0146FA        ADD     [BP-06], AX
13DB:5B11 EBE1          JMP     5AF4
13DB:5B13 B81400        MOV     AX, 0014
13DB:5B16 50            PUSH    AX
13DB:5B17 E816DF        CALL    3A30
13DB:5B1A 83C402        ADD     SP, +02
13DB:5B1D B85800        MOV     AX, 0058
13DB:5B20 50            PUSH    AX
13DB:5B21 50            PUSH    AX
13DB:5B22 E88AF0        CALL    4BAF
13DB:5B25 83C404        ADD     SP, +04
13DB:5B28 8B46FE        MOV     AX, [BP-02]
13DB:5B2B 3946FA        CMP     [BP-06], AX
13DB:5B2E 741F          JZ      5B4F
13DB:5B30 B80200        MOV     AX, 0002
13DB:5B33 50            PUSH    AX
13DB:5B34 B8A254        MOV     AX, 54A2
13DB:5B37 50            PUSH    AX
13DB:5B38 E89FF0        CALL    4BDA
13DB:5B3B 83C404        ADD     SP, +04
13DB:5B3E B80600        MOV     AX, 0006
13DB:5B41 50            PUSH    AX
13DB:5B42 9A6E33DB13    CALL    13DB:336E
13DB:5B47 83C402        ADD     SP, +02
13DB:5B4A E95AFE        JMP     59A7
13DB:5B4D EB1A          JMP     5B69
13DB:5B4F B80200        MOV     AX, 0002
13DB:5B52 50            PUSH    AX
13DB:5B53 B8B654        MOV     AX, 54B6
13DB:5B56 50            PUSH    AX
13DB:5B57 E880F0        CALL    4BDA
13DB:5B5A 83C404        ADD     SP, +04
13DB:5B5D B80B00        MOV     AX, 000B
13DB:5B60 50            PUSH    AX
13DB:5B61 9A6E33DB13    CALL    13DB:336E
13DB:5B66 83C402        ADD     SP, +02
13DB:5B69 8BE5          MOV     SP, BP
13DB:5B6B 5D            POP     BP
13DB:5B6C C3            RET
